SharePoint 2010 – Themes and CoreV4.css comparison technique for Developers

Ever wonder how SharePoint 2010 uses CoreV4.css and Themes together to style your site? In this blog post, I hope to grab this bull by the horns and make empower you to decode this large file and create your own themes.

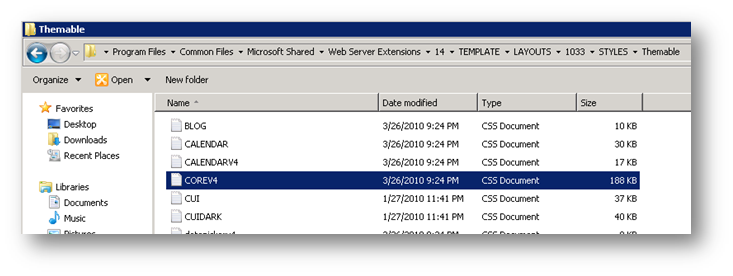

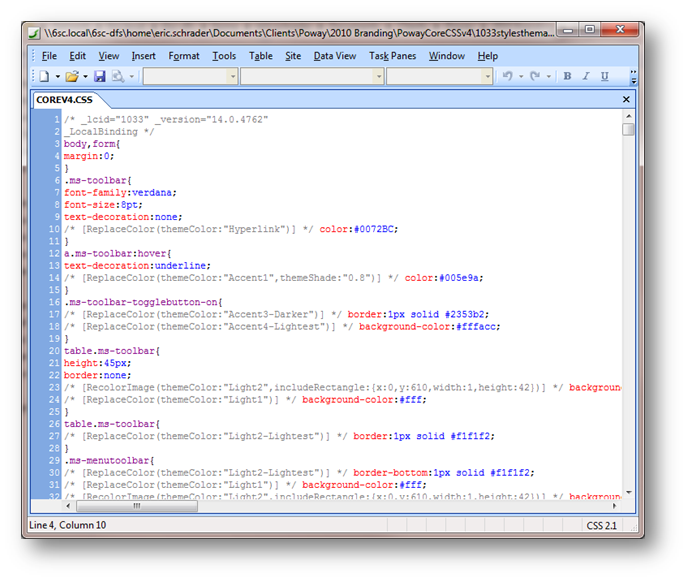

Basically, I took CoreV4.css located in C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\LAYOUTS\1033\STYLES\Themable and copied it locally, then attached it to my SharePoint page.

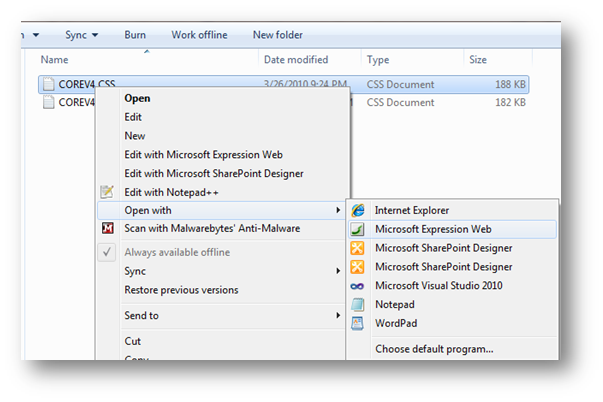

Figure 1- Copy the original CoreV4 from the backend to a local temporary drive to modify. Lcoation: C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\LAYOUTS\1033\STYLES\Themable

Save the copy to your SharePoint site in the Style Library or where you desire.

Open V4.master and add your CSS reference:

Find in V4.master at top:

<SharePoint:CssLink runat=”server” Version=”4″/>

<SharePoint:Theme runat=”server”/>

Add the following AFTER the above tags:

<!–custom add themes and css –>

<SharePoint:CssRegistration runat=”server” name=”<% $SPUrl:~sitecollection/Style Library/ClientName/CSS/style1.css %>” After=”corev4.css”/>

<SharePoint:CssRegistration name=”/Style Library/en-us/Themable/style.css” After=”corev4.css” runat=”server”/>

Change your paths to match. I have two tags, the first is for CSS, and the second is for Themable CSS files using themable comments.

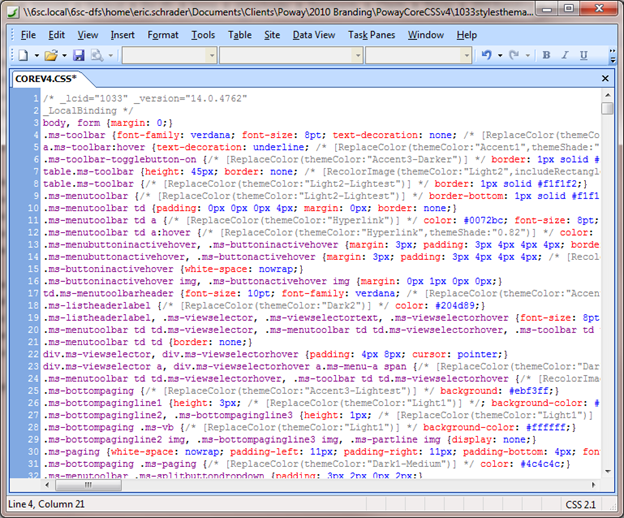

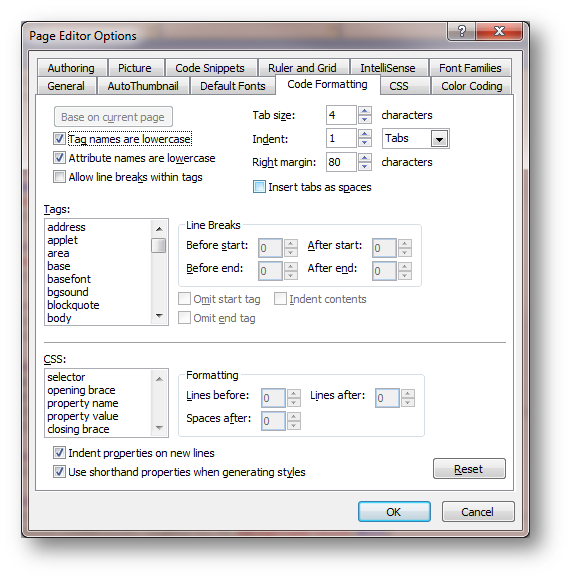

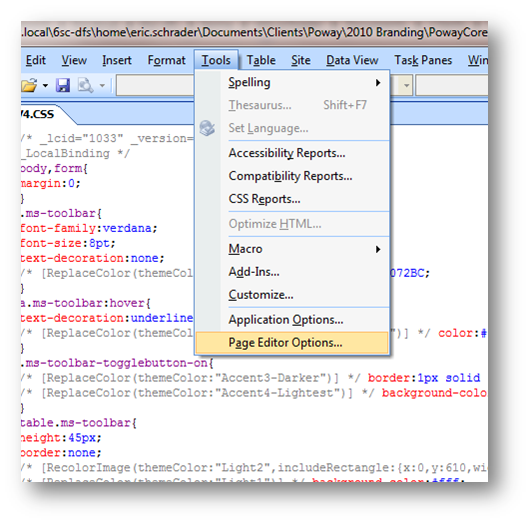

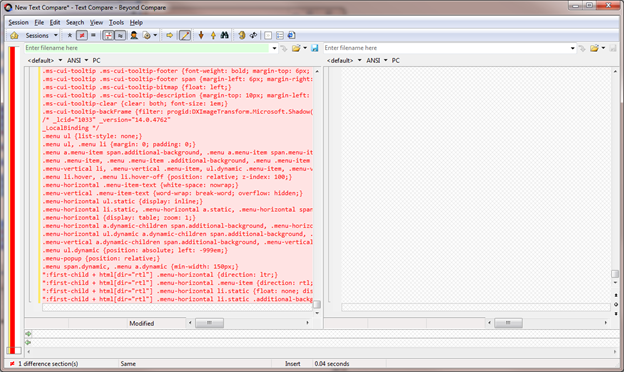

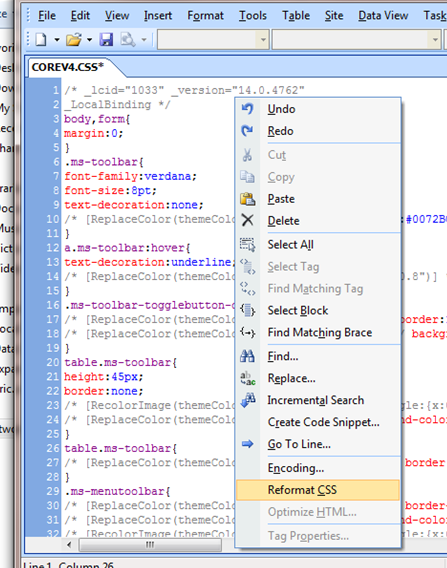

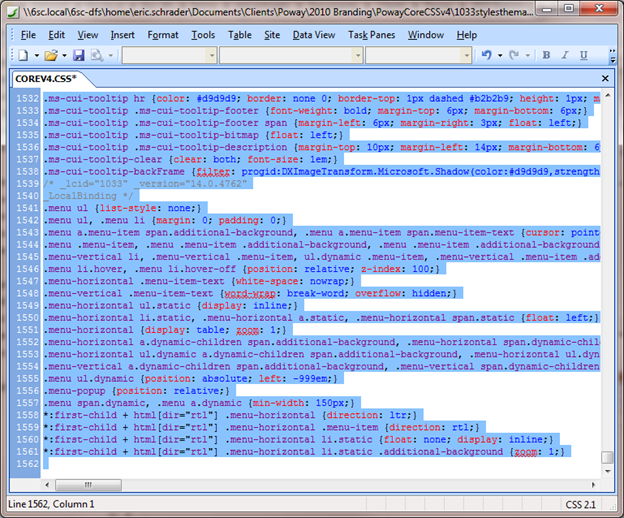

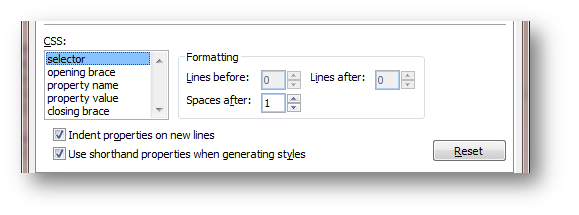

Once your file (copy of Corev4.css named Style or Style1.css) is in place, we can begin modifying it.

Themes:

Themes in SharePoint 2010 are pretty tough. There are about 60 permutations, and you can only define about 10 of those colors.

Heres the table:

Figure 2- You have seen this grid before from the Site Settings > Look and Feel > Themes page. The OOTB one has colors applied to each square. This image maps to the Themes page so you get an idea of what each color is called.

The colors you can define in themes are:

  1. Dark 1
  2. Light 2
  3. Dark 2
  4. Accent 1
  5. Accent 2
  6. Accent 3
  7. Accent 4
  8. Accent 5
  9. Accent 6
  10. non visited link
  11. visited link

The rest are generated from those that you define. This includes gradient images (they use transparent PNG overlays, big plus in my book) and a lot of other images used in SharePoint.

I put together an Excel of OOTB CoreV4.css

This Excel shows all the Theme Permutations, what CSS selector in CoreV4.css uses that Theme permutation, the CSS Selector and code itself, and a guide to whether it’s a Background attribute, Color attribute, or Border attribute defined in that selector.

Download from blog: https://eschrader.com/wp-content/uploads/2011/08/corev4-styles-calculated-no-errors_blog-export.xlsx

This is not used to modify the code (but it could be, just copy the PARSED CSS columns and paste it to a CSS file), but more as a guide to how CoreV4.css works.

The Green shows a match, eg. Which theme color matches to what CoreV4.css selector, and even a possible attribute. If its red, that theme or attribute was not a match in that selector. So if a theme permutation is red, then that theme color is not in that CSS tag. Pretty handy to get an idea whats in this file.

The numbers inside the green are just what position the theme permutation is found, eg. Hyperlink = 88 green just means that the word Hyperlink is found in that particular CSS selector at character 88. They can be ignored, but my Excel skills are lacking in that department 🙂

Each row is a selector from CoreV4.css.

Each of the first 60 columns is a theme permutation, and each cell that is green is a match of that theme permutation in that selectors CSS attributes value.

The column after that, I totalled how many theme permutations in that row are for that selector (some have up to I think 5 theme permutations in a single selector!)

Then the next few columns are the CSS selector, bracket, attributes/values, then closing CSS bracket. This can be copied and pasted into a CSS file if you want, just like CoreV4.css. NOTE: I may have mis-formatted some of the CoreV4.css, so just let me know if you find a typo/bad replacement and I will recheck it).  Note also that I parsed out all themable selectors only for this Excel. My rule to parse was any selector with a comment in the attributes section. CoreV4.css is not the only file, SharePoint has a few more, but this is the big momma of CSS files.

The next columns are some rough CSS attibutes, Background (image or Color), Color (for fonts, etc), and Border (color, size, width, etc)

Thats pretty much the Excel. Just a visual display of this bad boy. Notice how line 469 of my Excel has 0 number of times for a theme found. This is because they did not replace a token in their CSS, /* [ReplaceColor(V4_THEMING_COLOR_DAR2)] */;color: #3b4f65; So I figure if this Excel can catch this, it must be pretty useful.

This gives you an idea for how much themes are used in SharePoint, and how you can modify pretty much everything using your own theme.

I ended up breaking out CoreV4.css into to parts:

  1. Uses themable CSS comments
  2. Does not use themable CSS comments

The themable CSS I moved to a file in the Style Library/en-us/themable directory.

The Non-themable CSS I keep just in the Style Library a few folders down.

When a theme is applied, my themable CSS is applied. When my Non-themable CSS is modified, the changes are reflected instantly on the site.

This allows me to make changes to normal CSS without have to re-apply my theme to the entire site for my changes to show.

Here is a recent project I did, here is the Themable CSS: (must have file checked in, published, and apply another theme, then the theme for the changes to be seen, its pretty crazy… Good luck, once you get it, its easy)

My Themable CSS: (Style Library\en-us\Themable\Style.css)

.pageTitle {

    /* [ReplaceColor(themeColor:”Accent2″)] */    color: #8A2A1C;

    /* [ReplaceColor(themeColor:”Accent1″)] */    border-bottom: 1px #343434 dashed;

}

.bottomFooter, .bottomFooter a, .bottomFooter a:active, .bottomFooter a:hover, .bottomFooter a:visited {

    /* [ReplaceColor(themeColor:”Accent6″)] */    color: #FFFFFF;

}

.rightsidefixed {

    /* [ReplaceColor(themeColor:”Accent5″)] */    background-color:#e5dbc2

}

.s4-toplinks a.dynamic, .s4-toplinks a.dynamic:active, .s4-toplinks a.dynamic:hover, .s4-toplinks a.dynamic:link, .s4-toplinks a.dynamic:visited {

    /* [ReplaceColor(themeColor:”Accent2″)] */    color: #8A2A1C;

}

.ms-navitem A {

    /* [ReplaceColor(themeColor:”Accent6″)] */    color: #FFFFFF !important;

}

#s4-mainarea {

    /* [ReplaceColor(themeColor:”Light2″)] */    border: 6px #EDE8E2 solid;

    /* [ReplaceColor(themeColor:”Light2″)] */    background-color: #EDE8E2;

}

.containerBackground {

    /* [ReplaceColor(themeColor:”Light2″)] */    background-color: #EDE8E2;

}

body #s4-workspace {

    /* [ReplaceColor(themeColor:”Accent2″)] */    background-color: #8A281C;

}

body .s4-toplinks {

    /* [RecolorImage(themeColor:”Accent2″)] */    background: url(“/_layouts/images/selbg.png”) repeat-x left top;

    /* [ReplaceColor(themeColor:”Accent2″)] */    background-color: #f6f6f6;

    /* [ReplaceColor(themeColor:”Light2″)] */    border: 5px solid #ede8e2;

}

.s4-tn li.static > .menu-item, .s4-tn li.static > .menu-item:active, .s4-tn li.static > .menu-item:hover, .s4-tn li.static > .menu-item:link, .s4-tn li.static > .menu-item:visited {

    /* [ReplaceColor(themeColor:”Light1″)] */    color: #3b4f65;

}

.s4-toplinks .s4-tn a.selected, .s4-toplinks .s4-tn a.selected:active, .s4-toplinks .s4-tn a.selected:hover, .s4-toplinks .s4-tn a.selected:link, .s4-toplinks .s4-tn a.selected:visited {

    /* [ReplaceColor(themeColor:”Light2″)] */    border-color: #91cdf2;

    /* [RecolorImage(themeColor:”Light2″)] */    background: url(“/_layouts/images/selbg.png”) repeat-x left top;

    /* [ReplaceColor(themeColor:”Light2″)] */    background-color: #ccebff;

    /* [ReplaceColor(themeColor:”Accent2″)] */    color: #003759;

}

#s4-leftpanel, #s4-leftpanel a, #s4-leftpanel a:active, #s4-leftpanel a:hover, #s4-leftpanel a:link, #s4-leftpanel a:visited, #s4-leftpanel .ms-vb {

    /* [ReplaceColor(themeColor:”Light1″)] */    color:#FFFFFF

}

#s4-leftpanel #DatePickerDiv, #s4-leftpanel #DatePickerDiv a, #s4-leftpanel #DatePickerDiv a:active, #s4-leftpanel #DatePickerDiv a:hover, #s4-leftpanel #DatePickerDiv a:link, #s4-leftpanel #DatePickerDiv a:visited, #s4-leftpanel #DatePickerDiv .ms-vb {

    /* [ReplaceColor(themeColor:”Dark1″)] */    color:#343434

}

body #s4-leftpanel {

    /* [ReplaceColor(themeColor:”Accent3″)] */    background-color: #567F1A;

    /* [ReplaceColor(themeColor:”Light1″)] */    color:#FFFFFF

}

body #s4-leftpanel-content {

    /* [ReplaceColor(themeColor:”Light2-Lightest”)] */    border: 1px solid #dbddde;

}

.s4-ql ul.root > li > .menu-item, .s4-qlheader, .s4-qlheader:visited {

    /* [ReplaceColor(themeColor:”Light1″)] */    color: #FFFFFF;

}

.s4-ql ul.root ul > li > a {

    /* [ReplaceColor(themeColor:”Light1″)] */    color: #FFFFFF;

}

.s4-ql ul.root ul > li > a:hover {

    /* [ReplaceColor(themeColor:”Light1″)] */    color: #FFFFFF;

}

.s4-ql a.selected {

    /* [ReplaceColor(themeColor:”Accent4″)] */    background-color: #345208;

    /* [ReplaceColor(themeColor:”Light2-Lighter”)] */    border-top-color: #c6e5f8 !important;

    /* [ReplaceColor(themeColor:”Light2″)] */    color: #FFFFFF !important;

}

.s4-specialNavLinkList a {

    display: block;

    padding: 3px 4px 3px 10px;

}

.s4-specialNavLinkList a {

    /* [ReplaceColor(themeColor:”Light2″)] */    color: #3b4f65;

}

.ms-rteStyle-ContentHeader {

-ms-name:”Content Header”;

    /* [ReplaceColor(themeColor:”Accent2″)] */    background-color: #841019;

    /* [ReplaceColor(themeColor:”Light1″)] */    color: #FFFFFF;

    font-size:10pt;

    font-weight:bold;

    padding:4px 4px 5px 5px;

    border-top:5px #EDE8E2 solid;

    margin:0px;

    border-bottom:5px #FFFFFF solid;


}

.ms-rteStyle-ContentBackground {

    -ms-name:”Content Background”;

    background-color:#fff;

    margin:0px;

    padding:6px 10px;

}

.ms-WPHeader {

    /* [ReplaceColor(themeColor:”Accent2″)] */    background-color: #841019;

    /* [ReplaceColor(themeColor:”Light1″)] */    color: #FFFFFF;

}

.ms-WPTitle, .ms-WPTitle a, .ms-WPTitle a:active, .ms-WPTitle a:hover, .ms-WPTitle a:link, .ms-WPTitle a:visited {

    /* [ReplaceColor(themeColor:”Light1″)] */ color: #FFFFFF;

}

.s4-wpActive .ms-WPTitle, .s4-wpActive .ms-WPTitle a {

    /* [ReplaceColor(themeColor:”Light1″)] */ color: #FFFFFF;

}

My recent adjacent Style1.css file (Style Library\ClientName\CSS\Style1.css)

/*shell- under construction*/

body #s4-bodyContainer {

    margin: 0 3%;

    min-width: 935px;

/*no height in ie7, ie8, for firefox set height to 100%*/

}

body #s4-titlerow {

    border-left: 13px transparent solid;

}

/*modal shell – after shell*/

.ms-dialog body #s4-bodyContainer {

    margin: 0;/*remove red background margin from popup*/

    min-width: inherit;

}

.ms-dialog #s4-mainarea {

    border: 0px transparent solid; /* remove borders around content of popup*/

}

.ms-dialog .bottomFooter {

    display:none /* hide footer*/

}

/*shell*/

div.s4-pr {

    border-right: 0px transparent none;

}

/*BG Logos*/

#s4-workspace > div {

    background-image: url(‘../Images/bg_gradient.png’);

    background-repeat: repeat-y;

    background-position: -20px top;

}

#s4-workspace {

    background-image: url(‘../Images/PowayBuilding.png’);

    background-repeat: no-repeat;

    background-position: -20px top;

    background-attachment: scroll;

}

/*Header styling*/

.ms-siteactionsmenu > SPAN > SPAN > A {

    color:#FFFFFF

}

.s4-titletext {

    padding-bottom: 0px;

}

.s4-titletext {

    vertical-align: bottom;

}

table.s4-wpTopTable {

    margin-right: 4px;

}

.s4-help {

    margin-left: 4px;

}

/* Top Nav */

.s4-title {

    overflow: visible;

}

body #s4-topheader2 {

    border: 0px transparent none;

}

.s4-tn LI.dynamic > .menu-item:visited {

    font-weight: bold;

}

.s4-tn LI.dynamic > .menu-item:hover {

    font-weight: bold;

}

.s4-tn LI.dynamic > .menu-item:active {

    font-weight: bold;

}

.s4-tn LI.dynamic > .menu-item:link {

    font-weight: bold;

}

.s4-tn LI.dynamic > .menu-item {

    font-weight: bold;

}

.s4-tn ul.dynamic {

    padding: 5px;

    border-bottom: 1px #CFAEA4 solid;

}

.s4-tn a:visited {

    font-weight: bold;

}

.s4-tn a:link {

    font-weight: bold;

}

.s4-tn a:hover {

    font-weight: bold;

}

.s4-tn a:active {

    font-weight: bold;

}

.s4-tn a {

    font-weight: bold;

}

.menu-horizontal {

    padding: 0px;

    border: 0px;

    margin: 0px;

    border-spacing: 0px;

}

body .s4-toplinks {

    border-bottom: 0px solid transparent;

}

.s4-toplinks .s4-tn a.selected, .s4-toplinks .s4-tn a.selected:active, .s4-toplinks .s4-tn a.selected:hover, .s4-toplinks .s4-tn a.selected:link, .s4-toplinks .s4-tn a.selected:visited {

    padding: 4px 10px 6px 10px;

    margin: 0px 10px;

    border: 0;

}

/*breadcrumbs*/

.s4-title H1 A, .s4-title H2 A {

    display: inline;

}

.breadcrumbs {

    min-height: inherit;

    min-height: 10px;

}

.breadcrumbs h2 {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

.breadcrumbs a:link {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

.breadcrumbs a:visited {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

.breadcrumbs a:hover {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

.breadcrumbs a:active {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

.breadcrumbs a {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

.breadcrumbs {

    font-size: 10px;

    text-decoration: none;

    padding-bottom: 1px;

}

/*Left nav */

.ms-quicklaunchouter {

    width:100% /* Fixes minimum width in quick launch */

}

.leftnavtop, .ms-quicklaunchouter {

    float: left;

}

body #s4-leftpanel {

    width: 170px; /* make sure you set the margin-left on MSO_ContentTable to this number*/

}

/*left navigation indent first level */

#s4-leftpanel-content ul.root > li.static > a.static {

    border-bottom: 1px solid #ffffff;

    font-weight: bold;

}

/* left navigation indent second level*/

#s4-leftpanel-content ul.root > li.static > ul.static {

    padding-left: 20px;

    margin-left: -10px;

}

/* left navigation indent third level */

#s4-leftpanel-content ul.root > li.static > ul.static > li.static > ul.static {

    padding-left: 20px;

    margin-left: -10px;

/* left navigation indent fourth level*/

}

#s4-leftpanel-content ul.root > li.static > ul.static > li.static > ul.static > li.static > ul.static {

    padding-left: 30px;

    margin-left: -10px;

}

.s4-ql UL.root UL {

    margin: 0px;

}

.ms-quickLaunch {

    padding: 0px;

}

body #s4-leftpanel-content {

    padding: 0px 0px 5px;

    background-color: transparent;

    border-top-width: 0px;

    border-right-width: 0px;

    border-bottom-width: 0px;

    border-left-width: 0px;

}

.s4-ql ul.root > li > .menu-item, .s4-qlheader, .s4-qlheader:visited {

    font-size: 1.2em;

    margin: 0px;

    padding: 3px 4px 3px 10px;

    border-width: 1px 0px;

    border-style: solid;

    border-color: transparent;

    word-wrap: break-word;

    overflow-x: hidden;

}

.s4-ql ul.root ul > li > a {

    padding: 3px 4px 4px 10px;

    border-width: 1px 0px;

    border-style: solid;

    border-color: transparent;

    overflow-x: hidden;

    display: block;

    zoom: 1;

}

.s4-ql ul.root ul > li > a:hover {

    text-decoration: underline;

}

.s4-ql a.selected {

    background: url(“/_layouts/images/selbg.png”) repeat-x left top;

    border-width: 0px !important;

    padding-left: 9px !important;

}

/*content styling*/

#MSO_ContentTable {

    margin-left: 175px; /* Set s4-leftpanel width to equal or less than this*/;

    background-color: #EDE8E2; /*sets main area background color */

}

.contentCenterRegion {

    vertical-align: top;

}

ul.ms-rteStyle-ContentBackground, ol.ms-rteStyle-ContentBackground {

    list-style-position: inside; /*fix for rtf bullet points being to far to the left, also ordered lists */

}

.rightsidefixed {

    width: 250px; /* sets right layout zone width*/;

    vertical-align: top;

}

div.s4-title {

    background: transparent;

    background-color: transparent;

}

.ms-WPHeader {

    border-bottom: 5px #FFFFFF solid;

}

.ms-WPHeader TD {

    border-bottom: transparent 0px none !important;

    border-right: transparent 0px none !important;

    border-top: transparent 0px none !important;

    border-left: transparent 0px none !important;

}

.s4-wpTopTable, .s4-wpActive, .ms-settingsframe {

    background-color: #FFFFFF; /*make web part backgrounds white, even in edit mode*/;

}

.ms-rte-wpbox {

    margin-bottom: 8px; /*add spacing below each webpart*/

}

.floatleft {

    float: left;

}

.floatright {

    float: right;

}

.pageTitle {

    font-size: 20px;

    font-weight: bold;

    margin: 0px;

    padding: 0px;

    width: 80%;

    padding-top: 0px;

    margin-left: 10px;

    letter-spacing: 1px;

}

.ms-WPTitle {

    font-weight: bold;

}

/* Style right side web parts */

.rightSide #MSOZoneCell_WebPartWPQ20 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ19 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ18 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ17 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ16 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ15 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ14 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ13 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ12 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ11 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ10 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ9 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ8 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ7 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ6 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ5 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ4 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ3 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ2 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide #MSOZoneCell_WebPartWPQ1 {

    background-color: #fff;

    border: 5px #EDE8E2 solid;

}

.rightSide .ms-WPBody {

    padding: 10px;

}

/*News Webpart*/

.NewsArea {

    padding: 5px;

}

.NewsDate {

    padding-bottom: 5px;

}

/*user presence icon*/

.ms-imnlink img {

    border: 0px;

}

/*user description*/

div.description {

    padding-left: 17px;

}

/*footer styling*/

.bottomFooter {

    min-height: 44px;

    padding-top: 16px;

    padding-left: 4px;

    padding-right: 4px;

    clear: both;

}

.footerlinks {

    word-spacing: 4px;

    padding-bottom: 4px;

    line-height: 14px;

}

That’s it, let me know if you have questions and I can get more detail/instructions on any part.

For more on how to work with CoreV4.css and create your own CSS, see my other blog post from today.

A great way to create SharePoint 2010 CSS from original CSS

Working with SharePoint 2010’s CoreV4.css is very difficult. I have developed a technique to allow developers to leverage SharePoints OOTB CoreV4.css selectors, but while not hacking together CSS selectors and dealing with !important and other CSS hacks.

Here is the concept:

Your SharePoint page will have 2 stylesheets on it, CoreV4.css and a new blank file, Custom.css. Custom.css will have the exact contents of CoreV4.css, but be attached AFTER coreV4.css so it overwrites the original. This will allow you to modify Custom.css (a copy of CoreV4.css) directly from the SharePoint Designer or the browser. You can use IE Developer Toolbar or Firebug to get the selectors SharePoint 2010 uses OOTB, search for that selector in Custom.css, modify it, then save and test. Repeat for each change.

Once complete, you will have CoreV4.css (original) and Custom.css, both two very large files.

This next step is optional, but highly recommended for Production. Take CoreV4.css, format the CSS so the selectors are each on their own line, along with their attributes all on the same line. This way you only have each line starting with the selector.

Figure 1- Copy the original CoreV4 from the backend to a local temporary drive to modify. Lcoation: C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\LAYOUTS\1033\STYLES\Themable

Once Copied locally, you can open it in Microsoft Expression Web:

You should see:

From here, we need to Reformat the CSS to have each selector on its own line, eg:

Here is how we do it:

In Expression Web, go to Tools> Page Editor Options

Click on the Code Formatting Tab

We will modify these formatting rules to put each selector on one line.

Under the bottom CSS section, modify the following:

Figure 2- No changes to Selector

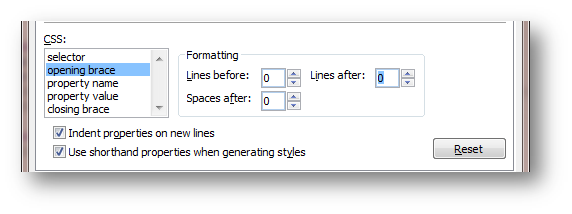

Figure 3- Change Lines After from 1 to 0

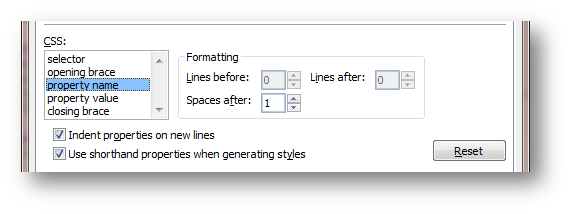

Figure 4- Property Name- No Changes

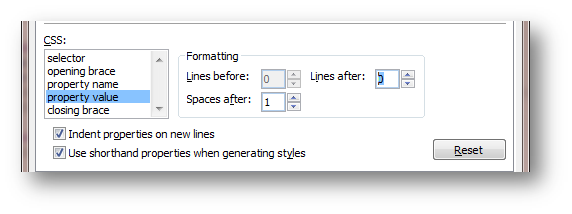

Figure 5-Proptery Value change Lines after from 1 to 0

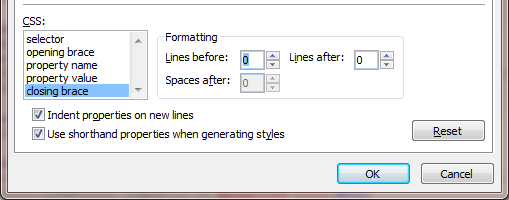

Figure 6- Closing Brace change Lines Before from 1 to 0, HIT OK

Now we can format our CoreV4.css copy to have each selector on its own line:

Figure 7- Right click on CoreV4.css in the Code view and go to Reformat CSS (Note, the file extention is .css)

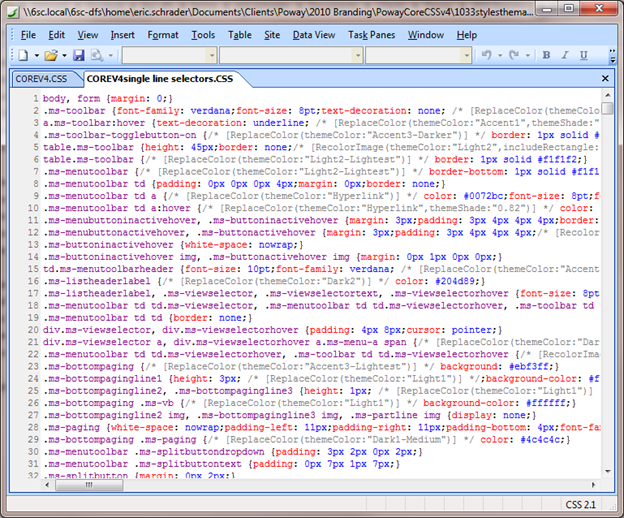

Your CSS should all be on one line:

Repeat the same steps for Custom.css (figure 7 and 8 above) (the copy of CoreV4.css you have been modifying. Once Custom.css looks like above, but with your changes, we can compare the two files and extract only the changed lines as an overwritter CSS file for Corev4.css )

I use Beyond Compare for this next step to compare the changes. You can use any tool that allows you to compare two text files and ONLY VIEW DIFFERENCES, and ALLOWS YOU TO EXTACT (copy and paste) OUT ONLY THE CHANGED LINES!

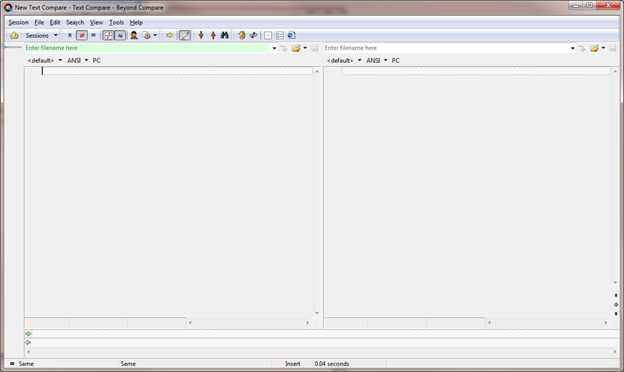

In Beyond Compare, do a new TEXT compare:

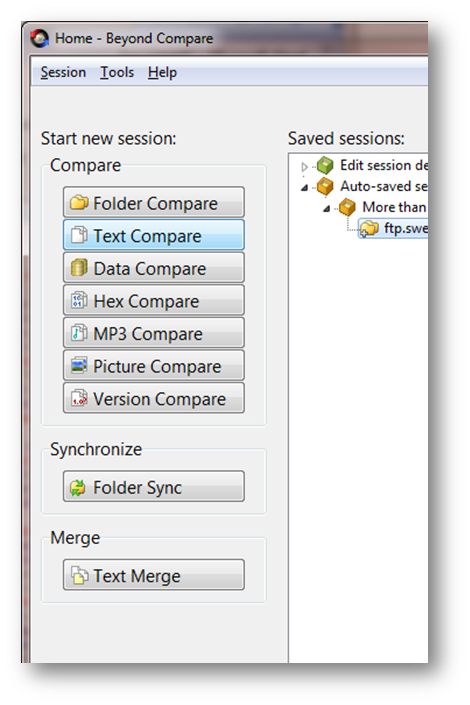

Figure 8- Click Text Compare from the button

Copy CoreV4.css

Paste on the left of the text compare:

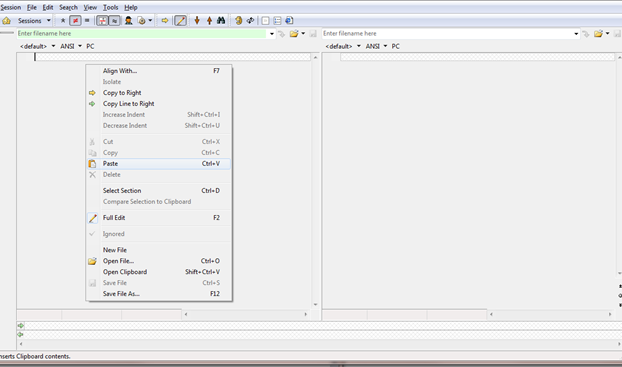

Figure 9- Paste on left

Copy Custom.css, (MAKE SURE ITS FORMATTED THE SAME AS COREv4.css, ALL SELECTORS ON OWN LINE)

Paste on the right side (MAKE SURE YOU ARE ON THE FIRST LINE, SCROLL TO THE TOP BEFORE YOU PASTE!) of the text compare:

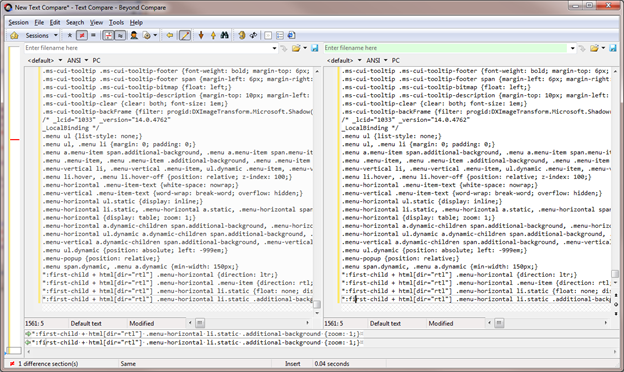

Now apply a filter to the comparison to only show changes:

Figure 10-Click Show Differences from the top bar.

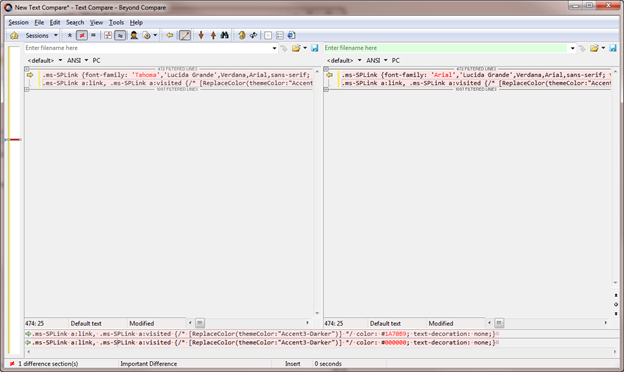

Figure 11- Uncheck Show Context (one with the up and down arrows and the red line)

Copy out the code on the right side with Select all, then Copy it.

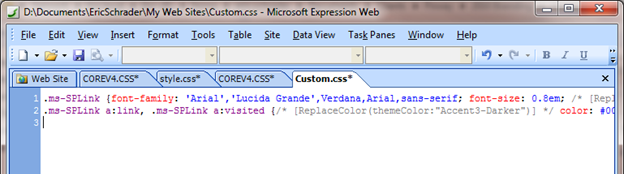

Now you can paste this code over your Custom.css file to only have the CSS Overwritters

.ms-SPLink {font-family: ‘Arial’,’Lucida Grande’,Verdana,Arial,sans-serif; font-size: 0.8em; /* [ReplaceColor(themeColor:”Accent3-Darker”)] */; color: #1A70B9;}

.ms-SPLink a:link, .ms-SPLink a:visited {/* [ReplaceColor(themeColor:”Accent3-Darker”)] */ color: #000000; text-decoration: none;}

My code, I changed the Font to Arial and the font color to #000000. No need for an entire duplicate of CoreV4.css in my Custom.css, just need the overwriting different CSS.

Note, this file contains Themable CSS comments. For my code changes to be applied, The CSS must be embeded to my masterpage using the following tag in the header, after the other CSS Theme tags.

<SharePoint:CssRegistration name=”/Style Library/en-us/Themable/style.css” After=”corev4.css” runat=”server”/>

 Then make sure you SAVE, Check in and publish/approve this CSS file. THEN apply a different theme, then apply back the desired theme. You CSS will now be visible. NOTE: apply themes to all subsites if you want the CSS to be visible during these steps.

Only do this at Export, as you want to have Custom.css a complete copy of Corev4.css during Development.

Hope this helps!

For more on modifying CoreV4.css, see my other blog post from today.
